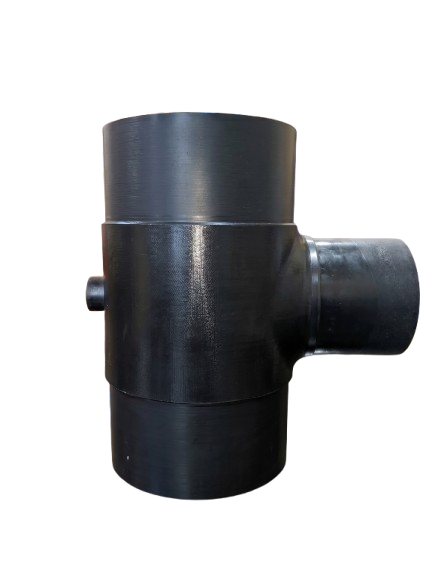

HDPE Reduced Tee

HDPE Reduced Tee

Size (mm) SDR17 SDR13.6 SDR11 SDR9 SDR7
75×63 4.4 3.7 5.5 4.6 6.8 5.7 8.3 7.0 10.7 9.0
90×50 5.3 2.9 6.6 3.7 8.2 4.5 10.0 5.6 12.9 7.1
90×63 5.3 3.7 6.6 4.6 8.2 5.7 10.0 7.0 12.9 9.0
90×75 5.3 4.4 6.6 5.5 8.2 6.8 10.0 8.3 12.9 10.7
110×50 6.5 2.9 8.1 3.7 10.0 4.5 12.2 5.6 15.7 7.1
110×63 6.5 3.7 8.1 4.6 10.0 5.7 12.2 7.0 15.7 9.0
110×75 6.5 4.4 8.1 5.5 10.0 6.8 12.2 8.3 15.7 10.7
110×90 6.5 5.3 8.1 6.6 10.0 8.2 12.2 10.0 15.7 12.9
125×75 7.4 4.4 9.2 5.5 11.4 6.8 13.9 8.3 17.9 10.7
125×90 7.4 5.3 9.2 6.6 11.4 8.2 13.9 10.0 17.9 12.9
125×110 7.4 6.5 9.2 8.1 11.4 10.0 13.9 12.2 17.9 15.7
160×63 9.4 3.7 11.8 4.6 14.5 5.7 17.8 7.0 22.9 9.0
160×75 9.4 4.4 11.8 5.5 14.5 6.8 17.8 8.3 22.9 10.7
315×90 18.5 5.3 23.2 6.6 28.6 8.2 35.0 10.0 45.0 12.9
315×110 18.5 6.5 23.2 8.1 28.6 10.0 35.0 12.2 45.0 15.7
315×160 18.5 9.4 23.2 11.8 28.6 14.5 35.0 17.8 45.0 22.9
315×180 18.5 10.6 23.2 13.2 28.6 16.4 35.0 20.0 45.0 25.7
315×200 18.5 11.8 23.2 14.7 28.6 18.2 35.0 22.2 45.0 28.6
315×225 18.5 13.2 23.2 16.5 28.6 20.5 35.0 25.0 45.0 32.1
315×250 18.5 14.7 23.2 18.4 28.6 22.7 35.0 27.8 45.0 35.7
315×280 18.5 16.5 23.2 20.6 28.6 25.5 35.0 31.1 45.0 40.0
400×315 23.5 18.5 29.4 23.2 36.4 28.6 44.4 35.0 57.1 45.0
400×355 23.5 20.9 29.4 26.1 36.4 32.3 44.4 39.4 57.1 50.7
450×315 26.5 18.5 33.1 23.2 40.9 28.6 50.0 35.0 64.3 45.0
450×400 26.5 23.5 33.1 29.4 40.9 36.4 50.0 44.4 64.3 57.1
500×125 29.4 7.4 36.8 9.2 45.5 11.4 55.6 13.9 71.4 17.9
500×160 29.4 9.4 36.8 11.8 45.5 14.5 55.6 17.8 71.4 22.9
500×250 29.4 14.7 36.8 18.4 45.5 22.7 55.6 27.8 71.4 35.7
500×315 29.4 18.5 36.8 23.2 45.5 28.6 55.6 35.0 71.4 45.0
500×400 29.4 23.5 36.8 29.4 45.5 36.4 55.6 44.4 71.4 57.1
560×160 32.9 9.4 41.2 11.8 50.9 14.5 62.2 17.8 80.0 22.9
560×250 32.9 14.7 41.2 18.4 50.9 22.7 62.2 27.8 80.0 35.7
560×355 32.9 20.9 41.2 26.1 50.9 32.3 62.2 39.4 80.0 50.7
560×400 32.9 23.5 41.2 29.4 50.9 36.4 62.2 44.4 80.0 57.1
630×400 37.1 23.5 46.3 29.4 57.3 36.4 70.0 44.4 90.0 57.1
630×500 37.1 29.4 46.3 36.8 57.3 45.5 70.0 55.6 90.0 71.4
630×560 37.1 32.9 46.3 41.2 57.3 50.9 70.0 62.2 90.0 80.0
710×355 41.8 20.9 52.2 26.1 64.5 32.3 78.9 39.4 101.4 50.7
710×500 41.8 29.4 52.2 36.8 64.5 45.5 78.9 55.6 101.4 71.4
800×250 47.1 14.7 58.8 18.4 72.7 22.7 88.9 27.8 114.3 35.7
800×280 47.1 16.5 58.8 20.6 72.7 25.5 88.9 31.1 114.3 40.0
800×315 47.1 18.5 58.8 23.2 72.7 28.6 88.9 35.0 114.3 45.0
800×355 47.1 20.9 58.8 26.1 72.7 32.3 88.9 39.4 114.3 50.7
800×400 47.1 23.5 58.8 29.4 72.7 36.4 88.9 44.4 114.3 57.1
800×450 47.1 26.5 58.8 33.1 72.7 40.9 88.9 50.0 114.3 64.3
800×500 47.1 29.4 58.8 36.8 72.7 45.5 88.9 55.6 114.3 71.4
800×560 47.1 32.9 58.8 41.2 72.7 50.9 88.9 62.2 114.3 80.0
800×630 47.1 37.1 58.8 46.3 72.7 57.3 88.9 70.0 114.3 90.0
800×710 47.1 41.8 58.8 52.2 72.7 64.5 88.9 78.9 114.3 101.4
900×355 52.9 20.9 66.2 26.1 81.8 32.3 100.0 39.4 128.6 50.7
900×400 52.9 23.5 66.2 29.4 81.8 36.4 100.0 44.4 128.6 57.1
900×450 52.9 26.5 66.2 33.1 81.8 40.9 100.0 50.0 128.6 64.3
900×500 52.9 29.4 66.2 36.8 81.8 45.5 100.0 55.6 128.6 71.4
900×630 52.9 37.1 66.2 46.3 81.8 57.3 100.0 70.0 128.6 90.0
1000×400 58.8 23.5 73.5 29.4 90.9 36.4 111.1 44.4 142.9 57.1
1000×450 58.8 26.5 73.5 33.1 90.9 40.9 111.1 50.0 142.9 64.3
1000×500 58.8 29.4 73.5 36.8 90.9 45.5 111.1 55.6 142.9 71.4
1000×630 58.8 37.1 73.5 46.3 90.9 57.3 111.1 70.0 142.9 90.0
1200×450 70.6 26.5 88.2 33.1 109.1 40.9 133.3 50.0 171.4 64.3
1200×500 70.6 29.4 88.2 36.8 109.1 45.5 133.3 55.6 171.4 71.4
1200×630 70.6 37.1 88.2 46.3 109.1 57.3 133.3 70.0 171.4 90.0

Description

Size (mm) SDR17 SDR13.6 SDR11 SDR9 SDR7
75x63 4.4 3.7 5.5 4.6 6.8 5.7 8.3 7.0 10.7 9.0
90x50 5.3 2.9 6.6 3.7 8.2 4.5 10.0 5.6 12.9 7.1
90x63 5.3 3.7 6.6 4.6 8.2 5.7 10.0 7.0 12.9 9.0
90x75 5.3 4.4 6.6 5.5 8.2 6.8 10.0 8.3 12.9 10.7
110x50 6.5 2.9 8.1 3.7 10.0 4.5 12.2 5.6 15.7 7.1
110x63 6.5 3.7 8.1 4.6 10.0 5.7 12.2 7.0 15.7 9.0
110x75 6.5 4.4 8.1 5.5 10.0 6.8 12.2 8.3 15.7 10.7
110x90 6.5 5.3 8.1 6.6 10.0 8.2 12.2 10.0 15.7 12.9
125x75 7.4 4.4 9.2 5.5 11.4 6.8 13.9 8.3 17.9 10.7
125x90 7.4 5.3 9.2 6.6 11.4 8.2 13.9 10.0 17.9 12.9
125x110 7.4 6.5 9.2 8.1 11.4 10.0 13.9 12.2 17.9 15.7
160x63 9.4 3.7 11.8 4.6 14.5 5.7 17.8 7.0 22.9 9.0
160x75 9.4 4.4 11.8 5.5 14.5 6.8 17.8 8.3 22.9 10.7
315x90 18.5 5.3 23.2 6.6 28.6 8.2 35.0 10.0 45.0 12.9
315x110 18.5 6.5 23.2 8.1 28.6 10.0 35.0 12.2 45.0 15.7
315x160 18.5 9.4 23.2 11.8 28.6 14.5 35.0 17.8 45.0 22.9
315x180 18.5 10.6 23.2 13.2 28.6 16.4 35.0 20.0 45.0 25.7
315x200 18.5 11.8 23.2 14.7 28.6 18.2 35.0 22.2 45.0 28.6
315x225 18.5 13.2 23.2 16.5 28.6 20.5 35.0 25.0 45.0 32.1
315x250 18.5 14.7 23.2 18.4 28.6 22.7 35.0 27.8 45.0 35.7
315x280 18.5 16.5 23.2 20.6 28.6 25.5 35.0 31.1 45.0 40.0
400x315 23.5 18.5 29.4 23.2 36.4 28.6 44.4 35.0 57.1 45.0
400x355 23.5 20.9 29.4 26.1 36.4 32.3 44.4 39.4 57.1 50.7
450x315 26.5 18.5 33.1 23.2 40.9 28.6 50.0 35.0 64.3 45.0
450x400 26.5 23.5 33.1 29.4 40.9 36.4 50.0 44.4 64.3 57.1
500x125 29.4 7.4 36.8 9.2 45.5 11.4 55.6 13.9 71.4 17.9
500x160 29.4 9.4 36.8 11.8 45.5 14.5 55.6 17.8 71.4 22.9
500x250 29.4 14.7 36.8 18.4 45.5 22.7 55.6 27.8 71.4 35.7
500x315 29.4 18.5 36.8 23.2 45.5 28.6 55.6 35.0 71.4 45.0
500x400 29.4 23.5 36.8 29.4 45.5 36.4 55.6 44.4 71.4 57.1
560x160 32.9 9.4 41.2 11.8 50.9 14.5 62.2 17.8 80.0 22.9
560x250 32.9 14.7 41.2 18.4 50.9 22.7 62.2 27.8 80.0 35.7
560x355 32.9 20.9 41.2 26.1 50.9 32.3 62.2 39.4 80.0 50.7
560x400 32.9 23.5 41.2 29.4 50.9 36.4 62.2 44.4 80.0 57.1
630x400 37.1 23.5 46.3 29.4 57.3 36.4 70.0 44.4 90.0 57.1
630x500 37.1 29.4 46.3 36.8 57.3 45.5 70.0 55.6 90.0 71.4
630x560 37.1 32.9 46.3 41.2 57.3 50.9 70.0 62.2 90.0 80.0
710x355 41.8 20.9 52.2 26.1 64.5 32.3 78.9 39.4 101.4 50.7
710x500 41.8 29.4 52.2 36.8 64.5 45.5 78.9 55.6 101.4 71.4
800x250 47.1 14.7 58.8 18.4 72.7 22.7 88.9 27.8 114.3 35.7
800x280 47.1 16.5 58.8 20.6 72.7 25.5 88.9 31.1 114.3 40.0
800x315 47.1 18.5 58.8 23.2 72.7 28.6 88.9 35.0 114.3 45.0
800x355 47.1 20.9 58.8 26.1 72.7 32.3 88.9 39.4 114.3 50.7
800x400 47.1 23.5 58.8 29.4 72.7 36.4 88.9 44.4 114.3 57.1
800x450 47.1 26.5 58.8 33.1 72.7 40.9 88.9 50.0 114.3 64.3
800x500 47.1 29.4 58.8 36.8 72.7 45.5 88.9 55.6 114.3 71.4
800x560 47.1 32.9 58.8 41.2 72.7 50.9 88.9 62.2 114.3 80.0
800x630 47.1 37.1 58.8 46.3 72.7 57.3 88.9 70.0 114.3 90.0
800x710 47.1 41.8 58.8 52.2 72.7 64.5 88.9 78.9 114.3 101.4
900x355 52.9 20.9 66.2 26.1 81.8 32.3 100.0 39.4 128.6 50.7
900x400 52.9 23.5 66.2 29.4 81.8 36.4 100.0 44.4 128.6 57.1
900x450 52.9 26.5 66.2 33.1 81.8 40.9 100.0 50.0 128.6 64.3
900x500 52.9 29.4 66.2 36.8 81.8 45.5 100.0 55.6 128.6 71.4
900x630 52.9 37.1 66.2 46.3 81.8 57.3 100.0 70.0 128.6 90.0
1000x400 58.8 23.5 73.5 29.4 90.9 36.4 111.1 44.4 142.9 57.1
1000x450 58.8 26.5 73.5 33.1 90.9 40.9 111.1 50.0 142.9 64.3
1000x500 58.8 29.4 73.5 36.8 90.9 45.5 111.1 55.6 142.9 71.4
1000x630 58.8 37.1 73.5 46.3 90.9 57.3 111.1 70.0 142.9 90.0
1200x450 70.6 26.5 88.2 33.1 109.1 40.9 133.3 50.0 171.4 64.3
1200x500 70.6 29.4 88.2 36.8 109.1 45.5 133.3 55.6 171.4 71.4
1200x630 70.6 37.1 88.2 46.3 109.1 57.3 133.3 70.0 171.4 90.0
