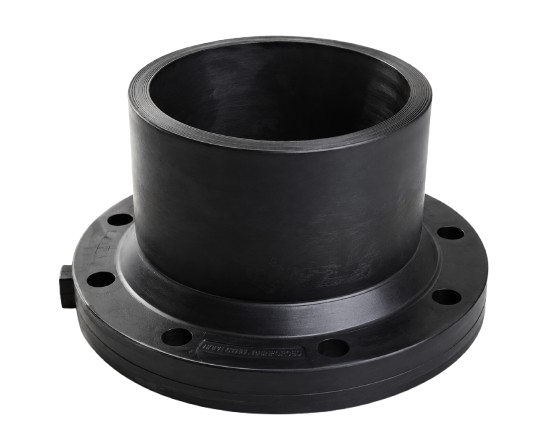

HDPE Steel Reinforced Flange Adapter
<div class=”table-wrapper”>
<table class=”table products-table table-bordered” style=”width: 100%;”>
<thead>
<tr>
<th style=”color: #eee !important; background: #2f3293 !important;”>Size mm</th>
<th style=”color: #eee !important; background: #2f3293 !important;”>SDR17</th>
<th style=”color: #eee !important; background: #2f3293 !important;”>SDR13.6</th>
<th style=”color: #eee !important; background: #2f3293 !important;”>SDR11</th>
<th style=”color: #eee !important; background: #2f3293 !important;”>SDR9</th>
<th style=”color: #eee !important; background: #2f3293 !important;”>SDR7</th>
<th style=”color: #eee !important; background: #2f3293 !important;”>PCD mm</th>
<th style=”color: #eee !important; background: #2f3293 !important;”>No.holes no.</th>
</tr>
</thead>
<tbody>
<tr>
<td>50</td>
<td>2.9</td>
<td>3.7</td>
<td>4.5</td>
<td>5.6</td>
<td>7.1</td>
<td>110</td>
<td>4</td>
</tr>
<tr>
<td>63</td>
<td>3.7</td>
<td>4.6</td>
<td>5.7</td>
<td>7.0</td>
<td>9.0</td>
<td>125</td>
<td>4</td>
</tr>
<tr>
<td>75</td>
<td>4.4</td>
<td>5.5</td>
<td>6.8</td>
<td>8.3</td>
<td>10.7</td>
<td>145</td>
<td>4 (or 8 for some PN16)</td>
</tr>
<tr>
<td>90</td>
<td>5.3</td>
<td>6.6</td>
<td>8.2</td>
<td>10.0</td>
<td>12.9</td>
<td>160</td>
<td>8</td>
</tr>
<tr>
<td>110</td>
<td>6.5</td>
<td>8.1</td>
<td>10.0</td>
<td>12.2</td>
<td>15.7</td>
<td>180</td>
<td>8</td>
</tr>
<tr>
<td>125</td>
<td>7.4</td>
<td>9.2</td>
<td>11.4</td>
<td>13.9</td>
<td>17.9</td>
<td>180</td>
<td>8</td>
</tr>
<tr>
<td>140</td>
<td>8.2</td>
<td>10.3</td>
<td>12.7</td>
<td>15.6</td>
<td>20.0</td>
<td>210</td>
<td>8</td>
</tr>
<tr>
<td>160</td>
<td>9.4</td>
<td>11.8</td>
<td>14.5</td>
<td>17.8</td>
<td>22.9</td>
<td>240</td>
<td>8</td>
</tr>
<tr>
<td>180</td>
<td>10.6</td>
<td>13.2</td>
<td>16.4</td>
<td>20.0</td>
<td>25.7</td>
<td>240</td>
<td>8</td>
</tr>
<tr>
<td>200</td>
<td>11.8</td>
<td>14.7</td>
<td>18.2</td>
<td>22.2</td>
<td>28.6</td>
<td>295</td>
<td>8 (PN10) / 12 (PN16)</td>
</tr>
<tr>
<td>225</td>
<td>13.2</td>
<td>16.5</td>
<td>20.5</td>
<td>25.0</td>
<td>32.1</td>
<td>295</td>
<td>8 (PN10) / 12 (PN16)</td>
</tr>
<tr>
<td>250</td>
<td>14.7</td>
<td>18.4</td>
<td>22.7</td>
<td>27.8</td>
<td>35.7</td>
<td>350 (PN10) / 355 (PN16)</td>
<td>12</td>
</tr>
<tr>
<td>280</td>
<td>16.5</td>
<td>20.6</td>
<td>25.5</td>
<td>31.1</td>
<td>40.0</td>
<td>350 (PN10) / 355 (PN16)</td>
<td>12</td>
</tr>
<tr>
<td>315</td>
<td>18.5</td>
<td>23.2</td>
<td>28.6</td>
<td>35.0</td>
<td>45.0</td>
<td>400 (PN10) / 410 (PN16)</td>
<td>12</td>
</tr>
</tbody>
</table>
</div>
Description
| Size mm | SDR17 | SDR13.6 | SDR11 | SDR9 | SDR7 | PCD mm | No.holes no. |
|---|---|---|---|---|---|---|---|
| 50 | 2.9 | 3.7 | 4.5 | 5.6 | 7.1 | 110 | 4 |
| 63 | 3.7 | 4.6 | 5.7 | 7.0 | 9.0 | 125 | 4 |
| 75 | 4.4 | 5.5 | 6.8 | 8.3 | 10.7 | 145 | 4 (or 8 for some PN16) |
| 90 | 5.3 | 6.6 | 8.2 | 10.0 | 12.9 | 160 | 8 |
| 110 | 6.5 | 8.1 | 10.0 | 12.2 | 15.7 | 180 | 8 |
| 125 | 7.4 | 9.2 | 11.4 | 13.9 | 17.9 | 180 | 8 |
| 140 | 8.2 | 10.3 | 12.7 | 15.6 | 20.0 | 210 | 8 |
| 160 | 9.4 | 11.8 | 14.5 | 17.8 | 22.9 | 240 | 8 |
| 180 | 10.6 | 13.2 | 16.4 | 20.0 | 25.7 | 240 | 8 |
| 200 | 11.8 | 14.7 | 18.2 | 22.2 | 28.6 | 295 | 8 (PN10) / 12 (PN16) |
| 225 | 13.2 | 16.5 | 20.5 | 25.0 | 32.1 | 295 | 8 (PN10) / 12 (PN16) |
| 250 | 14.7 | 18.4 | 22.7 | 27.8 | 35.7 | 350 (PN10) / 355 (PN16) | 12 |
| 280 | 16.5 | 20.6 | 25.5 | 31.1 | 40.0 | 350 (PN10) / 355 (PN16) | 12 |
| 315 | 18.5 | 23.2 | 28.6 | 35.0 | 45.0 | 400 (PN10) / 410 (PN16) | 12 |
